Charging Dock for DJI Matrice 4T / 4E / 4TD / 4D Series


Built From Real Mission Needs

The sUASOps Charging Dock was originally developed for my own operational workflow as a SAR and public-safety drone pilot. Call-outs often come with no advance notice, and because batteries are stored at a safe 40–60% charge level for longevity, charging must begin while en route.


Seating Matrice batteries into a charging hub inside a vehicle requires precise alignment. The dock’s guided, fixed-position design makes battery insertion fast, easy, and secure—even while mobile.


By mounting the complete Charging Assembly on top of a DJI Power 1000, the result is a:

  • Clean
  • Self-contained
  • Mission-ready


charging station — with no loose cables running across the vehicle and no unstable equipment.


Designed for Real SAR Flight Operations

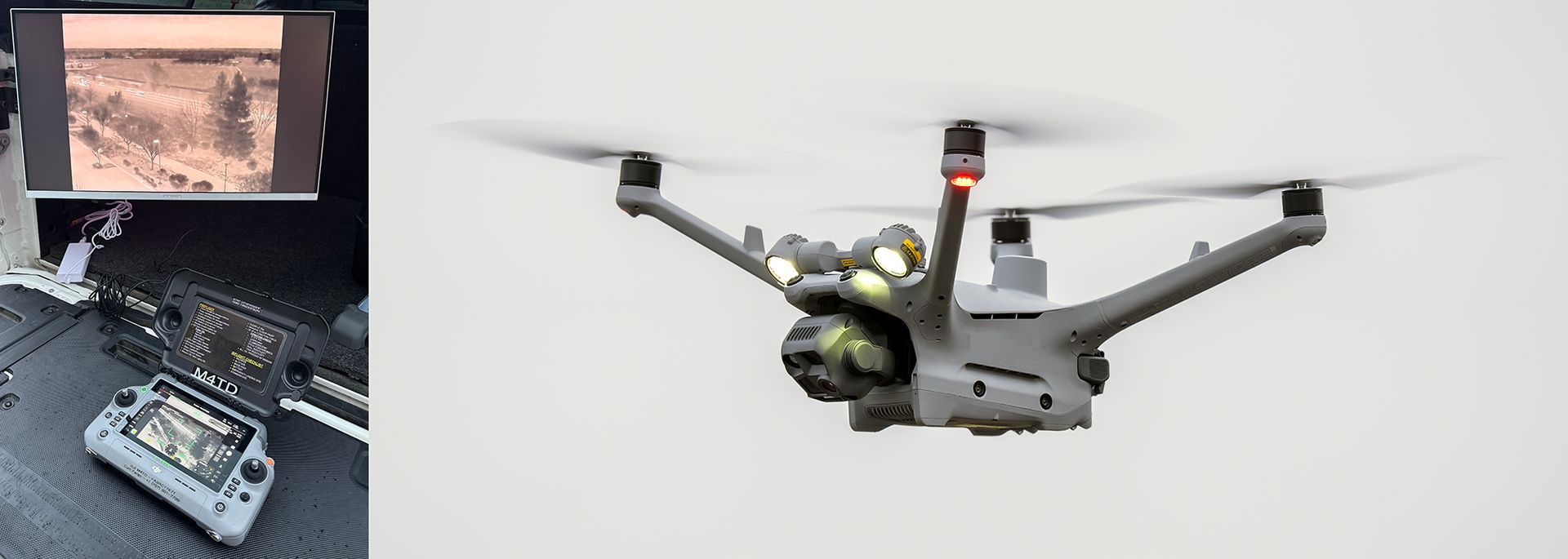

Our SAR team flies DJI Matrice 4Ts and uses the LKTOP 200W charger, which delivers at least twice the charging speed of the OEM 100W charger.


However, the LKTOP system introduces multiple individual battery leads — creating a true “octopus” in the field.


At my team lead’s request, I developed a dock specifically to:

  • Organize the wiring
  • Secure each battery position
  • Create a stable mobile charging platform


This required many prototypes and extensive field testing, resulting in a purpose-built system that performs reliably in real deployments.


Mission-Ready Battery Organization for the Field


Looking for a better way to manage your DJI Matrice 4 batteries during transport and charging?


The sUASOps Charging Dock is purpose-built to securely hold and organize your Matrice 4 series batteries, creating a stable, efficient, and professional charging setup for serious drone operations.


Available in Three Configurations

DJI Matrice 4TD/D

OEM 240W Charging Hub

DJI Matrice 4T/E

OEM 100W Charging Hub

DJI Matrice 4T/E

LKTOP 200W  Multi Charger

The dock is precision-designed to support the following charging systems:

  • DJI Matrice 4TD/D OEM 240W Charging Hub
  • DJI Matrice 4T/E OEM 100W Charging Hub
  • LKTOP 200W Matrice 4T/E Multi Charger


Each configuration can be purchased as:


Dock Only
or
Complete Charging Assembly (Dock + Charger)


➡ Add the compatible DJI charging hub or LKTOP charger for $180


This gives you a fully integrated, ready-to-deploy charging solution right out of the box.

Build a Complete Charging Station


The dock is precision-fit for the DJI Power 1000 (V1/V2), creating a fully integrated charging station.


Charging Station configuration features:

  • Dedicated rear mount for RC Plus 2 controller
  • Self-contained cable management
  • Stable mobile deployment


Also compatible with:

  • Most portable power stations
  • Any flat charging surface


Field-Ready Flexibility


🚗 Charge While En Route


In Charging Station configuration, the unit can be safely positioned in a vehicle’s back seat or floorboard so batteries charge while you travel to the mission.


🛠 Rapid On-Scene Deployment


At the operation site, simply place the dock on a table or stable surface for fast battery swaps and continuous charging near your flight area.


🔌 Vehicle Inverter Compatible


When using a vehicle inverter, operate in Charging Assembly mode (Dock + Hub) and secure the unit with mounting hardware or Velcro if desired.


For additional redundancy, connect the DJI Power 1000 to the inverter and use it as a UPS (Uninterrupted Power Supply):


  • Keeps the power station charged
  • Maintains continuous output during engine cycling
  • Ensures mission-critical batteries are always charging


Designed for Professional Operators


Ideal for:

  • Public safety & emergency response
  • Inspections & industrial operations
  • Mapping & surveying
  • Utility and infrastructure work


The result: faster turnarounds, reduced downtime, and a cleaner, more efficient battery workflow.


Material Options – Built for Real-World Operations


Both versions are engineered for daily professional use.


Your choice comes down to color customization vs. maximum structural performance.


🌈 PETG – Durable, Functional, and Available in Multiple Colors


Price: $69


A proven, high-performance material that delivers:

  • Excellent strength and heat resistance
  • High impact durability
  • A clean, professional appearance
  • Multiple color options for team, aircraft, or workspace identification


PETG offers an outstanding balance of performance, reliability, and value for everyday operations.


🛡️ ASA-GF (Glass-Fiber Reinforced) – Performance Upgrade


Price: $89


For operators who want the most rigid and structurally reinforced version available.


This advanced composite provides:

  • Higher stiffness and structural strength
  • Reduced flex under load
  • Lighter weight than PETG
  • Excellent thermal and environmental stability
  • Professional tactical gray finish


Because ASA-GF requires specialized filament drying, hardened print infrastructure, and higher material cost, it is offered as our premium performance option for demanding environments and heavy daily use.


Which Version Is Right for You?


Choose PETG if you want:

  • Multiple color options
  • Proven durability for daily operations
  • Outstanding value


Choose ASA-GF if your priority is:

  • Maximum rigidity and strength
  • Lighter weight
  • The most robust version we offer


Both are built for serious drone operators — the material simply lets you tailor the dock to your mission and workflow.


At-a-Glance


PETG – $69
✔ Multiple colors
✔ Tough & impact-resistant
✔ Ideal for everyday use


ASA-GF Upgrade – $89
✔ Glass-fiber reinforced
✔ Lighter & more rigid
✔ Built for demanding environments


Available Colors

  • Midnight Black
  • Drone Gray
  • Rescue Orange
  • Fire Fighter Red
  • Law Enforcement Red/Blue
  • Tactical Gray (ASA-GF Upgrade)



Charging Hub Comparison

Feature DJI 100W Charging Hub (4T/E) LKTOP 200W Multi Charger (4T/E) DJI 240W Charging Hub (4TD/D)
Primary Use Standard field charging Simultaneous multi-battery charging High-speed operational charging
Power Output 100W 200W 240W
Charge Speed Slowest of the three Faster than 100W DJI hub 🔥 Fastest charging option
Charging Method Sequential Parallel / multi-battery capable Sequential (high-speed)
Batteries Charged at Once 1 at a time (rotational) Multiple batteries simultaneously* 1 at a time (rapid rotation)
Best For Light-duty operations Continuous flight workflows Public safety
Budget-conscious programs Bench or mobile charging stations Time-critical missions
High flight tempo
Field Deployment ✔ ✔✔ ✔✔
Vehicle Inverter Friendly ✔ ✔✔ ✔✔
Integration with Dock ✔ ✔ ✔
OEM / Aftermarket DJI OEM Aftermarket professional solution DJI OEM

  *Actual simultaneous charge count depends on battery state and power source capacity.



Quick Recommendation Guide


Choose the DJI 100W Hub (4T/E) if:


✔ You want the most economical OEM option
✔ Your flight tempo is moderate
✔ Overnight or low-cycle charging is acceptable


Choose the LKTOP 200W Multi Charger (4T/E) if:


✔ You want to charge multiple batteries at the same time
✔ You’re running continuous flight operations
✔ You’re building a bench or mobile charging station


Choose the DJI 240W Hub (4TD/D) if:


✔ You are charging 4TD/D batteries
✔ You need the fastest turnaround time
✔ You fly back-to-back missions
✔ You operate in public safety or time-critical environments





⏱ Estimated Charge Time per Battery

Feature DJI 100W Charging Hub (4T/E) LKTOP 200W Multi Charger (4T/E) DJI 240W Charging Hub (4TD/D)
Charge Method Sequential Parallel / smart distribution Sequential (high-speed)
Time – 1 Battery (Full) ~90–110 minutes* ~56 minutes ~55–60 minutes
Time – 1 Battery (15% → 90%) ~70–90 minutes* ~45–50 minutes* ~30 minutes
Time – 3 Batteries Total ~4.5–5.5 hours (rotational)* ~1 hour 50 minutes ~2.5–3 hours (rapid rotation)*
Operational Turnaround Slow Fast continuous workflow Fastest single-battery recovery

 *Estimated based on power class and sequential charging behavior.


Source Highlights


  • DJI 240W system: ≈30 min from 15% → 90% for one battery
  • LKTOP 200W:
  • ≈56 min for first battery
  • ≈1 hr 50 min for three batteries total
  • DJI 100W hub: sequential charging only (lower wattage = longest cycle time)


🧠 Real-World Mission Meaning (this speaks directly to your SAR / public safety buyers)


DJI 100W (4T/E)

  • Best for: overnight charging, low flight tempo
  • Not ideal for back-to-back sorties


LKTOP 200W (4T/E)

  • Best for: continuous operations
  • Multiple packs always cycling
  • Bench or mobile charging stations


DJI 240W (4TD/D)

  • Best for: fastest single-pack redeployment
  • Critical when you’re flying the same battery repeatedly
