DeployNet™ Elite Portable Internet System

Fully Integrated Connectivity for Professional Field Operations

The DeployNet™ Elite Portable Internet System is a rugged, self-contained connectivity solution designed for drone operations, incident command, emergency response, and remote deployments.

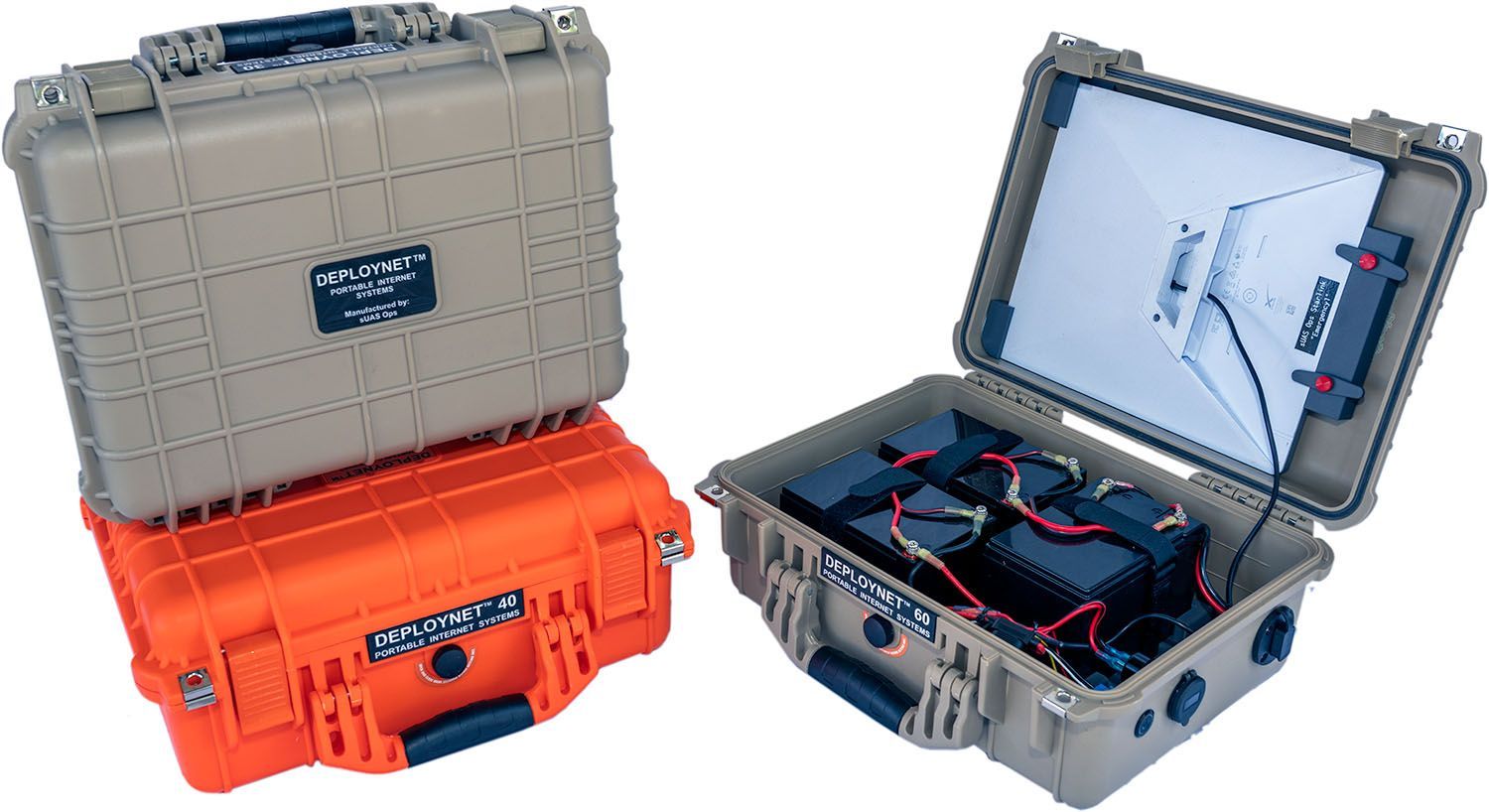

Built inside a durable protective case, the Elite Series takes the proven DeployNet™ platform and elevates it with a fully enclosed, professionally integrated internal design, enhanced protection, and real-time system monitoring.

No loose wiring. No exposed components. No compromises.

Everything is securely mounted, protected, and ready to deploy—simply press the illuminated power switch and you're online.

DeployNet™ Elite provides reliable internet service wherever your Starlink Mini has a clear view of the sky.

The Elite Series is designed for users who require:

• A clean, enclosed system layout
• Enhanced durability and protection
• Real-time power monitoring
• Professional-grade construction
• Improved field reliability

This is not just an upgrade — it is a fully integrated deployment system built for demanding environments.

Available Configurations

DeployNet™ 30 — Elite (Standard Runtime)

Ideal for typical deployments, travel, and backup internet.

• Battery Capacity: 30Ah (408Wh)
• Typical Runtime: 8–12 hours
• Approximate Weight: 18 lbs

DeployNet™ 40 — Elite (Extended Runtime)

Provides longer operation between charges while maintaining a compact footprint.

• Battery Capacity: 40Ah (544Wh)
• Typical Runtime: 11–16 hours
• Approximate Weight: 19 lbs

DeployNet™ 60 — Elite (Maximum Runtime)

Designed for extended missions and multi-day operations.

• Battery Capacity: 60Ah (816Wh)
• Typical Runtime: 16–24 hours
• Approximate Weight: 23 lbs

DeployNet™ 80 — Elite (Extended+ Runtime)

Built for long-duration missions and continuous operation where maximum uptime is critical.

• Battery Capacity: 80Ah (1088Wh)
• Typical Runtime: 21–32 hours
• Approximate Weight: 27 lbs

This configuration provides approximately:

• 33% more runtime than the 60Ah system
• 100% more runtime than the 40Ah system
• Nearly 3× the runtime of the 30Ah system

Key Features

• Fully enclosed wiring and battery system
• Clean, professional internal layout
• Integrated real-time power monitoring (shunt-based system)
• External Anderson Powerpole connector with weather-tight cover
• One-switch operation — deploy in seconds
• Illuminated waterproof metal power switch
• Can be operated while charging
• Solar-ready — compatible with external solar panels and MPPT charge controllers
• Self-contained portable internet system
• Integrated LiFePO4 battery power
• Built-in USB and 12V charging ports
• Rugged protective hard case
• All stainless steel hardware throughout
• Designed for transport and demanding field use

Power & Runtime

DeployNet™ Elite systems are engineered for real-world performance, not lab estimates.

Runtime is calculated using actual load conditions and system efficiency to provide dependable expectations in the field.

How We Calculate Runtime

Battery runtime is often overstated in marketing. We provide realistic numbers based on:

• Actual device power draw
• Battery management system (BMS) cutoff
• System losses from wiring and voltage conversion

Formula Used:

Runtime = (Battery Wh × 0.75–0.80) ÷ Device Watts

This ensures reliable expectations for real deployments.

Integrated Power & Monitoring System

The Elite Series includes a real-time power monitoring system, allowing operators to track:

• Voltage
• Current (Amps)
• Power usage
• System load

This provides critical visibility during extended operations, helping users manage runtime and power consumption in the field.

External Power Connectivity

The DeployNet™ Elite system includes multiple external power connection options to support a wide range of field applications.

Included External Connections:

• Anderson Powerpole connector with weather-tight protective cover
• SAE external power connector for quick-connect power applications

These connections provide:

• Secure and reliable external power input/output
• Compatibility with common field power systems
• Flexible integration with vehicle power, auxiliary batteries, and solar setups
• Quick connection and disconnection in operational environments
• This allows the DeployNet™ Elite to be easily integrated into existing power systems used in public safety, SAR, and remote operations.

Integrated Power Ports

DeployNet™ Elite also functions as a portable power source.

Built-in Ports

• USB-C fast charging
• Dual USB-A ports
• 12V accessory socket
• Integrated power switch
• Digital battery monitoring

Solar Charging Capability

DeployNet™ Elite is solar-ready and can be recharged using external solar panels when paired with a compatible MPPT solar charge controller.

This allows extended off-grid operation for:

• Search and rescue
• Disaster response
• Remote job sites
• Long-duration deployments

Solar panels should not be connected directly without a charge controller.

Environmental Protection

The DeployNet™ Elite system is housed in an IP65-rated protective case, providing protection against dust and water exposure during transport and storage.

When deployed (case open), the system is not sealed and should be used with appropriate care in wet conditions.

Durability and Serviceability

The Elite Series is built for long-term reliability in demanding environments.

• Stainless steel and brass hardware throughout
• Corrosion-resistant construction
• Mechanically fastened (no snap clips or glue)
• Fully serviceable internal design

The enclosed system improves protection while maintaining long-term serviceability.

Case Specifications

Built inside an IP65-rated Apache 3800 protective case:

External Dimensions:
16.9" L × 14.7" W × 6.7" H

Internal Dimensions:
15.2" L × 12.2" W × 5.7" H

Features:

• Impact-resistant polymer construction
• Weather-resistant gasket seal
• Dual latches
• Pressure equalization valve
• Molded carry handle

Battery Specifications

Battery Type:
LiFePO4 (Lithium Iron Phosphate)

System Voltage:
12V

Cycle Life:
2,000–4,000 cycles

Expected Service Life:
Up to 10 years under normal use

Case Color Options

• Rescue Orange — High visibility for field operations
• Tan — Low-profile / tactical appearance

Typical Uses

• Emergency response
• Search and rescue (SAR)
• Mobile command posts
• Remote job sites
• Disaster recovery
• Construction and utilities
• Farming and ranching
• Off-grid operations
• Backup internet during outages

What’s Included

• DeployNet™ Elite system
• Internal LiFePO4 battery (based on selected configuration)
• 110V battery charger
• Integrated power ports
• Real-time monitoring system
• Fully assembled and ready to deploy

Important Requirement

A Starlink Mini antenna and active service subscription are required for operation and are not included with this system.

DeployNet™ Standard vs Elite

Looking for a more cost-effective option?

👉 View DeployNet™ Standard Series
